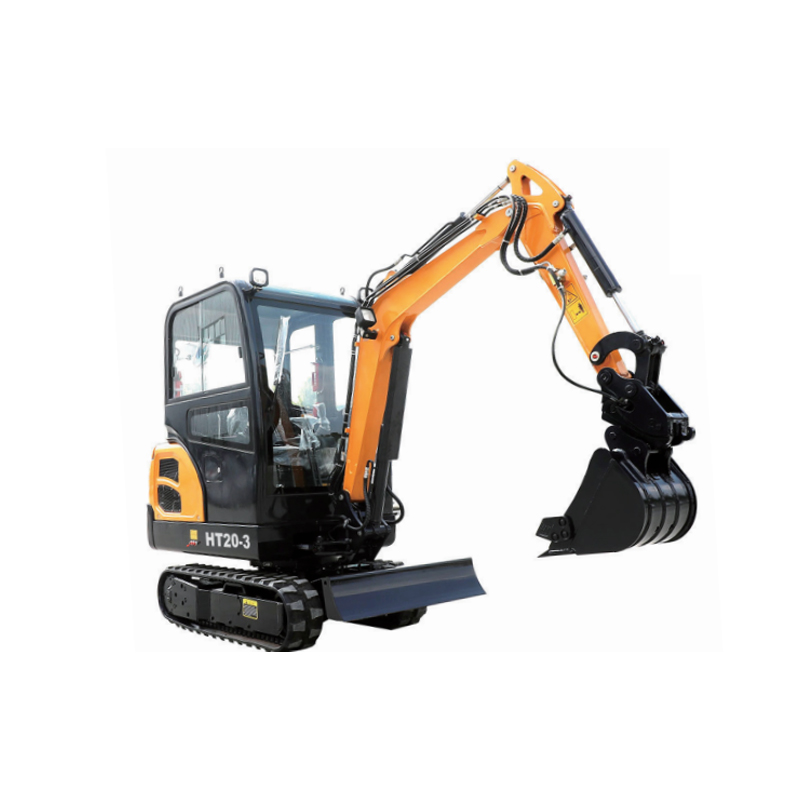

HT20-3 Mini Excavator
This 2 ton mini excavator can be easy to change any accessory of excavator.
Retractable shoes and steel shoes are optional.
Front window can open and close
1. Temperature adjustment
The purpose of temperature regulation is to keep the air of the cab at a proper temperature. For the room temperature, it is generally suitable to keep it at 25-27℃ in summer and 18-20℃ in winter.
2. Air flow adjustment
Temperature adjustment can only be achieved by air flow. Therefore, air flow adjustment cannot be ignored in air conditioning. Air flow adjustment and distribution directly affect the use of air conditioning systems.
|
Machine Size |
|
|
Overall dimension (L*W*H) |
4170mm*1300mm*2280mm |
|
Axle base(Track length on ground) |
1230mm |
|
Track gauge |
1070mm |
|
Min.Ground clearance |
230mm |
|
Swing radius at tail |
1180mm |
|
Track System |
|
|
Maximum Travel speed |
3.5km/h |
|
Width of track shoe |
230mm |
|
Number of track shoe per side |
38pcs |
|
Number of upper roller per side |
0 |
|
Number of bottom roller per side |
4 |
|
Performance Parameter |
|
|
Standard bucket capacity |
0.1m³ |
|
Swing speed |
12rpm |
|
Max. Grade ability |
30° |
|
Max. Bucket digging force |
15.3KN |
|
Max. Arm digging force |
10.5KN |
|
Hydraulic system pressure |
18Mpa |
|
Machine weight |
2000kg |
|
Arm length |
1000mm |
|
Engine |
|
|
Emission Standard |
Euro5/ EPA |
|
Engine Model |
KUBOTA |
|
Power/Rotation speed |
14.1kw(20HP)2000rpm |
|
Optional Engine |
China Laidong 22.1kw,2300rpm |
|
Number of cylinder |
3 |
|
Working Range |
|
|
Max. Digging height |
3700mm |
|
Max. Dumping height |
2290mm |
|
Max. Digging depth |
2450mm |
|
Max. Vertical digging depth |
2160mm |
|
Max. Digging radius |
4370mm |
|
Min .swing radius |
2020mm |
|
Max. Lifting height of blade |
240mm |
|
Max. Cutting depth of blade |
310mm |
|
Boom swing angle(Left) |
75° |
|
Boom swing angle(Right) |
45° |
