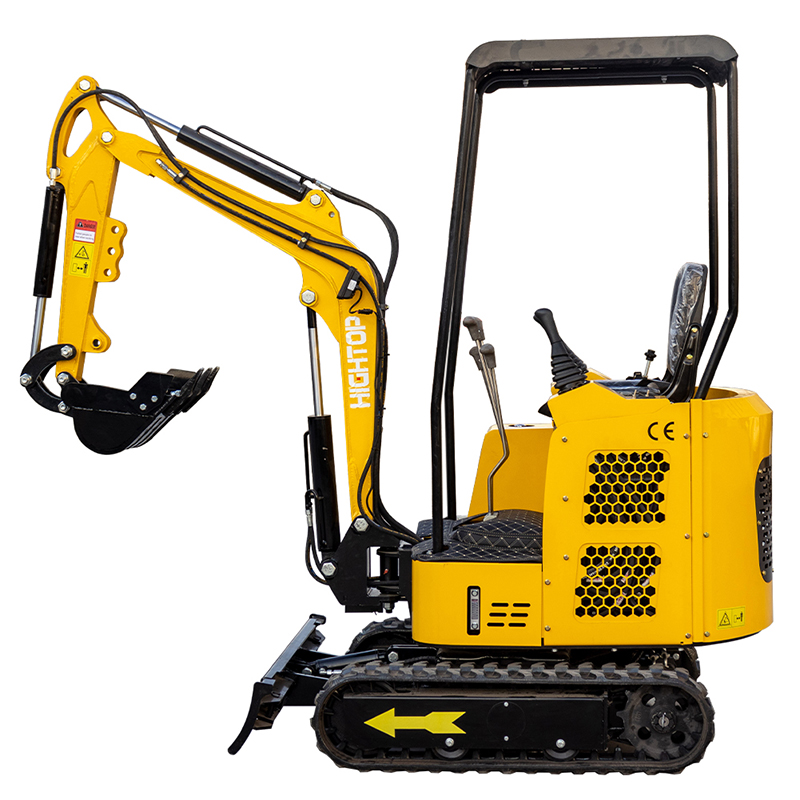

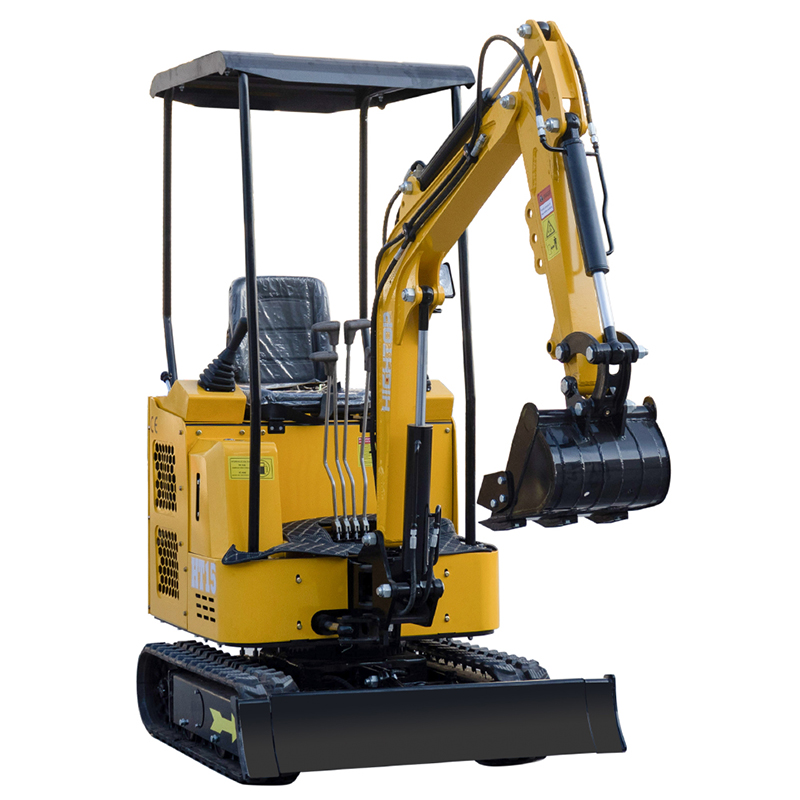

HT15 Mini Excavator Double cylinder water cool engine, hydraulic joystick.
Euro 5, EPA, CE,ISO certificate
Optional:hydraulic pilot joystick,boom swing,extendable
Long life
Strong Power
360°Rotate
Simple operation
Low Consumption
Excellent quality

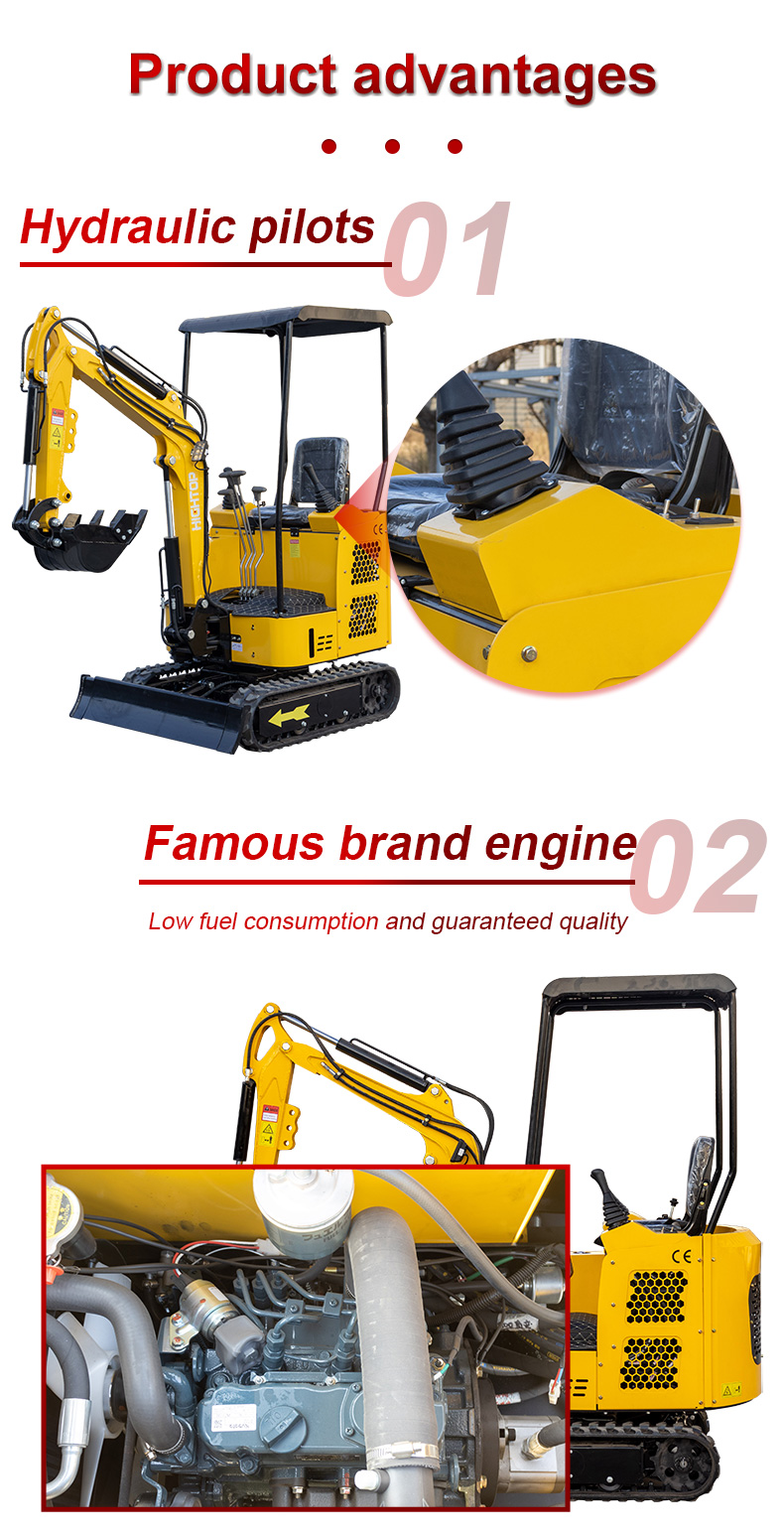

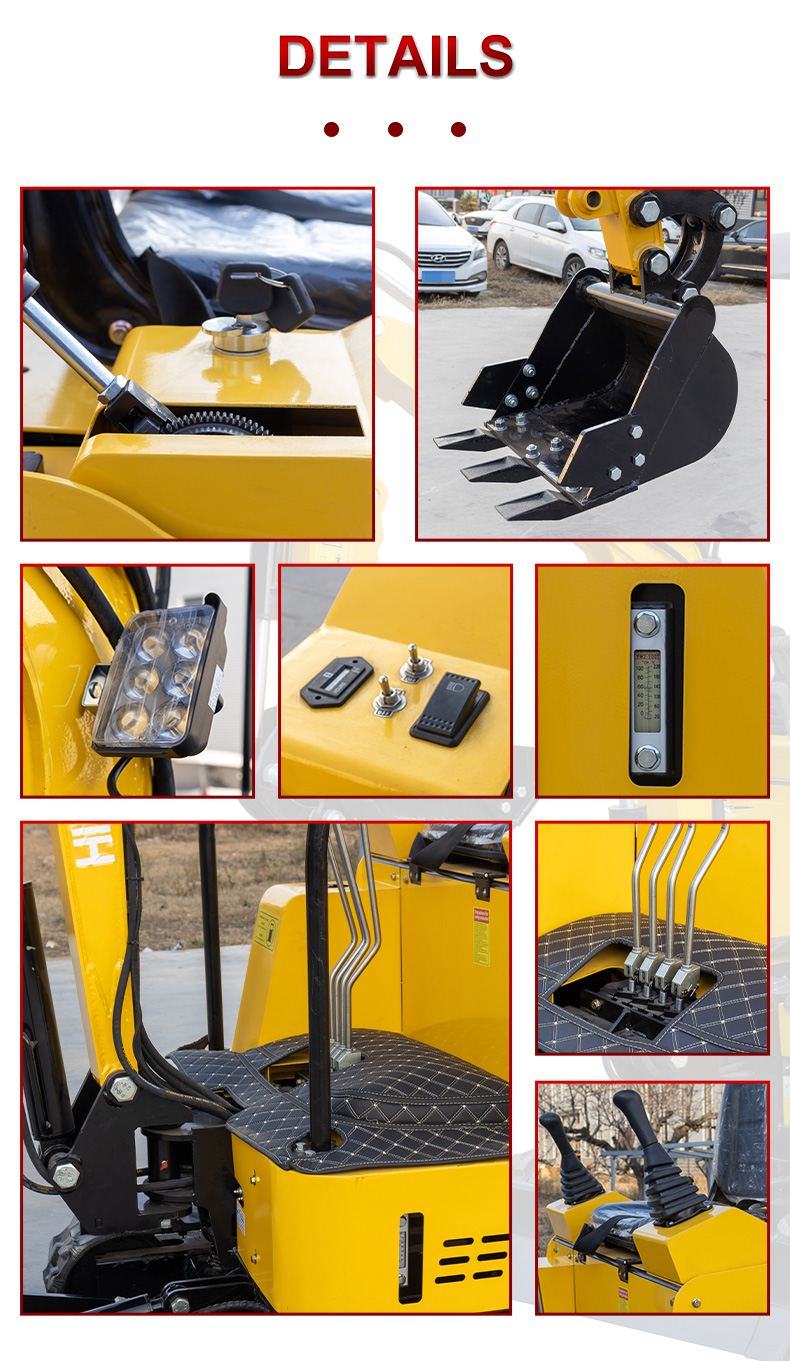

1.Hydraulic pilots
2.Famous brand engine.Low fuel consumption and guaranteed quality.

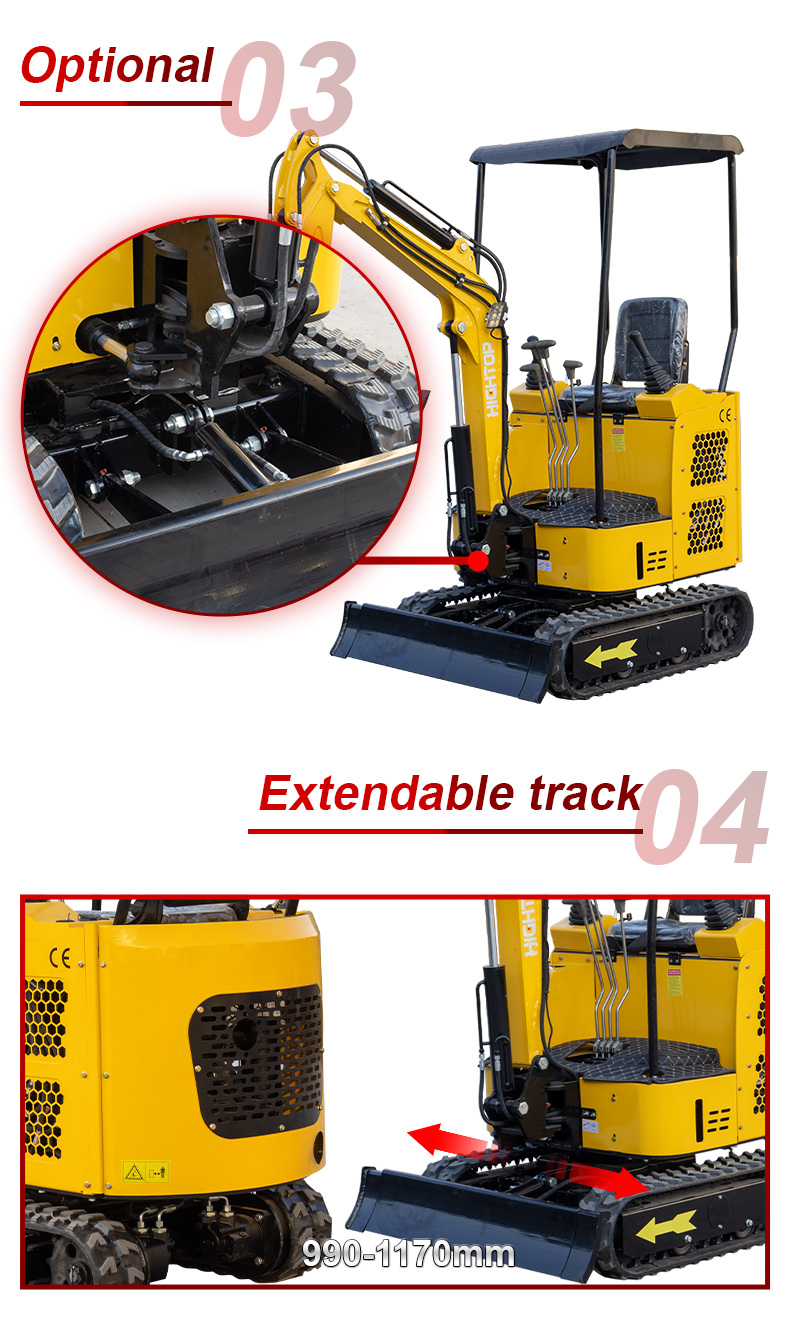

3.Optional
4.Extendable track .990-1170mm
5.Rubber track.Gear transmission,strong grip,Optional telescopic crawler.

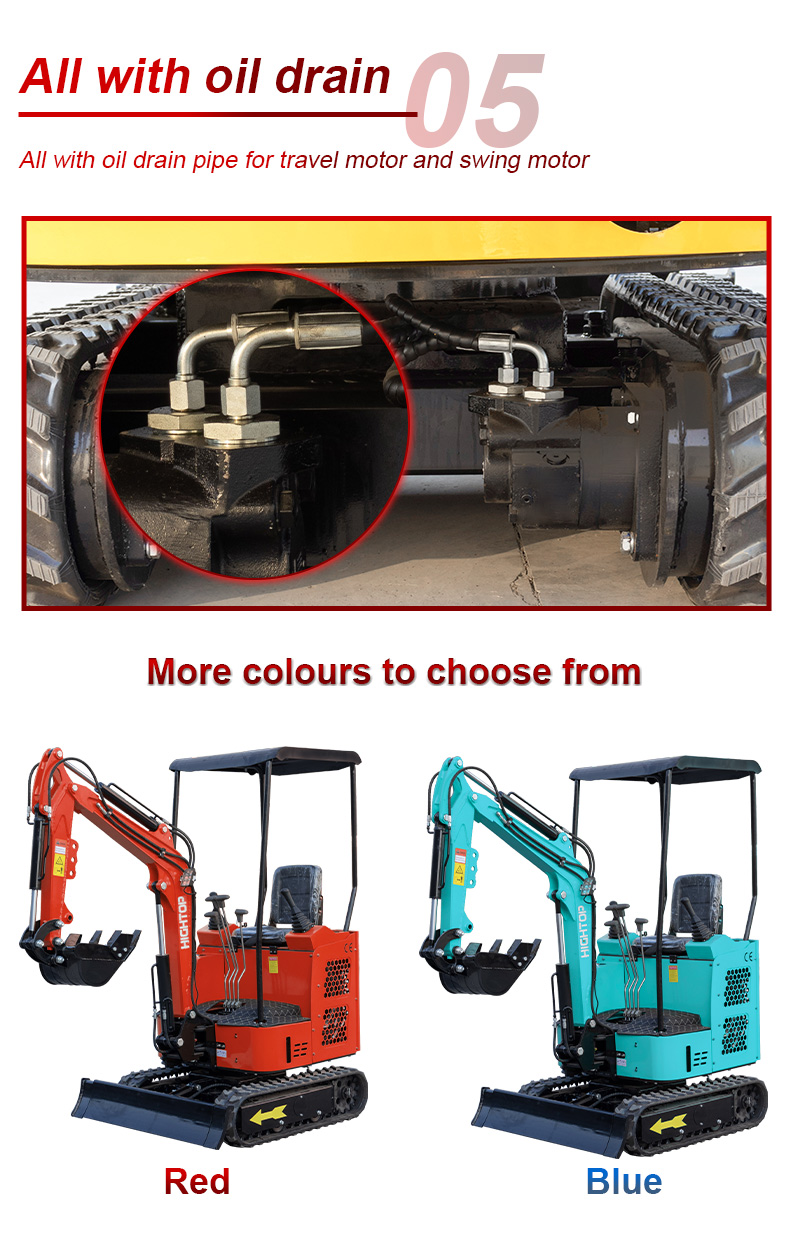

6.All with oil drain.All with oil drain pipe for travel motor and swing motor.

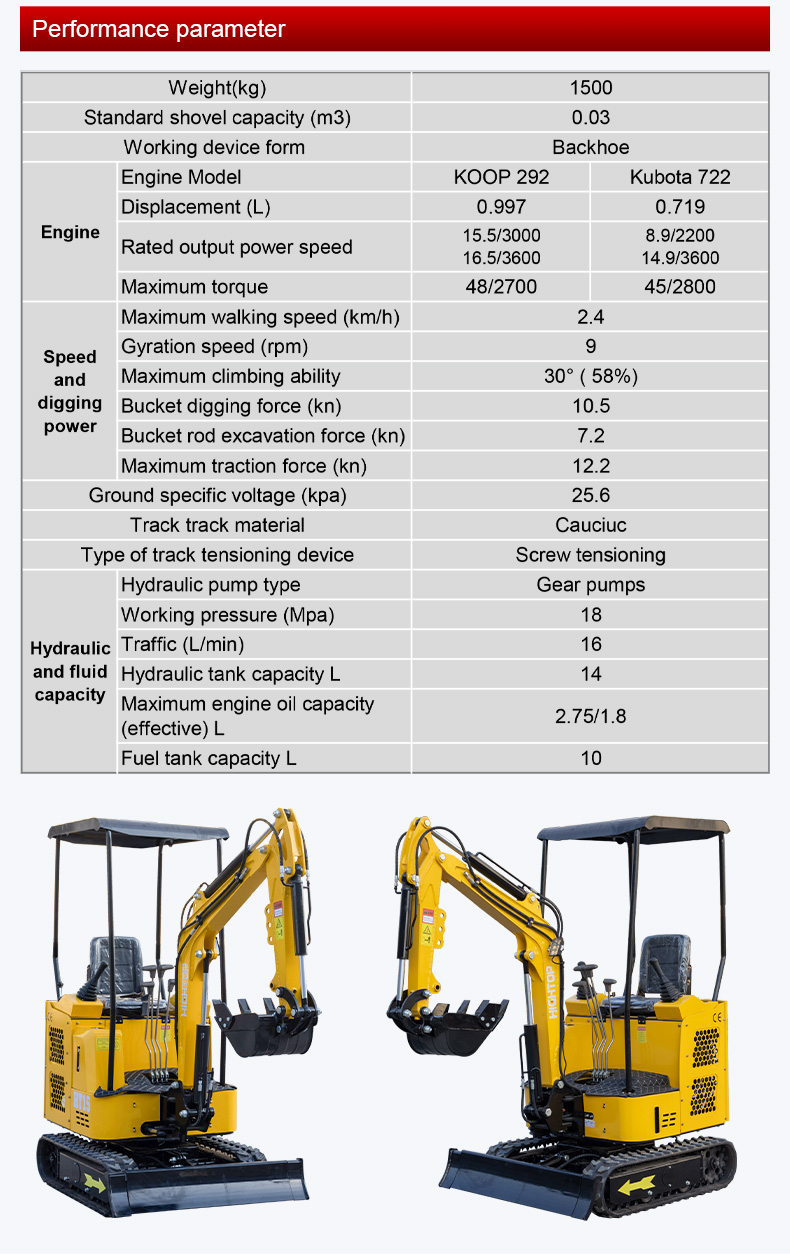

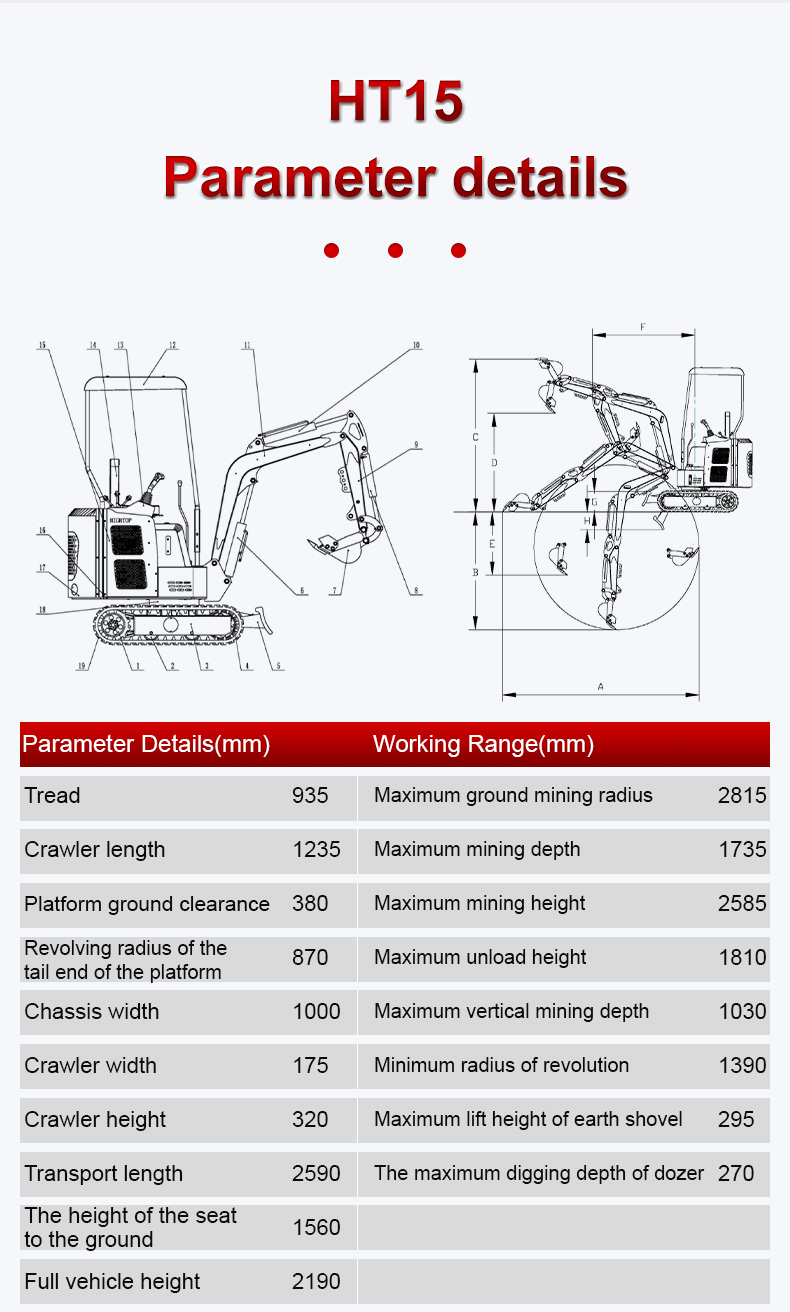

| Model:HT15 | Main Demensions |
|
Operating Range | ||||
| Weight | 1500kg |
Overall dimension ( LxWxH) |
2550x940x1380 mm | Max. Digging depth | 1650 mm | ||
| Digging bucket capacity | 0.025cbm/120kg | Wheelbase | 770mm | Max. Vertical digging depth | 1800 mm | ||
| Bucket width | 380mm | Total length of track | 1090mm | Max. Digging height | 2610 mm | ||
| Engine | KOOP (292F) | Platform ground clearance | 380 mm | Max. Dumping height | 1850 mm | ||
| Bore stroke | double cylinder, Air cool | Platform back turning radius | 733 mm | Max. Digging radius on ground | 2850 mm | ||
| Rated power | 14 kw/3000r/min | Chassis width | 940 mm | Min. Rotation radius | 1330 mm | ||
| Displacement | 0.794 L | Track width | 180 mm | Max. Upgrade height of bulldozer blade | 345 mm | ||
| Travel speed | 3.5km/h | Chassis ground clearance | 380 mm | Max. Digging depth of bulldozer blade | 255 mm | ||
|
|
|
|
Track height | 320 mm |
|
|
|
