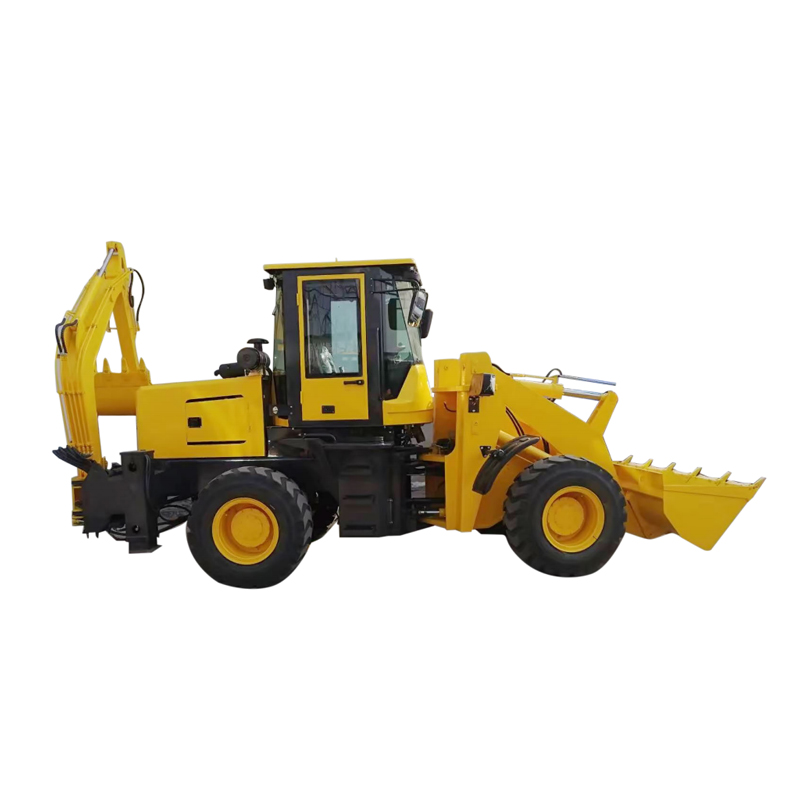

HT25-30 Backhoe Loader
Model:HT25-30 |
|||
DIMENSION |
ENGINE |
||
Overall size(mm) |
6500*2040*2800 |
Engine Model |
YUNNEI YN48GBZ |
Wheel base(mm) |
2675 |
Type |
Four-Stroke |
Wheel tread(mm) |
1630 |
Rated Power(KW) |
92 |
Min. Ground Clearance(mm) |
280 |
Rated Rotary speed(r/min) |
2400 |
PERFORMANCE PARAMETER |
Cylinders - inner diameter |
3-90(4-90) |
|
Pressure of the system(MPa) |
18 |
DRIVE SYSTEM |
|
Machine weight(Kg) |
6000 |
Gearbox |
Fixed shaft power shift |
Max. speed(Km/h) |
28 |
Optional Gears |
Front 2 rear2 |
Max Climb Capability(°) |
25 |
Hydraulic torque converter |
ZL29A |
Min. turning radius(mm) |
4500 |
EPS |
|
DIGGING PARAMETER |
type |
Articulated full hydraulic steering |
|
Max. Digging depth(mm) |
2600 |
Steering angle(°) |
33 |
Dumping Height(mm) |
2300 |
BRIDGE |
|
Max. Digging Radius(mm) |
4600 |
TYPE |
Wheel edge deceleration |
Budcket width(mm) |
600 |
TYRE |
|
Bucket capacity(m3 ) |
0.25 |
size |
16/70-20 |
Max. Digging height(mm) |
4300 |
Front wheel pressure(KPa) |
250 |
Max. force(KN) |
28 |
Back wheel pressure(KPa) |
250 |
DiggingRotary angle (°) |
180 |
service brake |
Oil brake drum brake |
LOADER PARAMETER |
Parking brake |
manual |
|
Max.unloading height(mm) |
3500 |
FUEL |
|
Max. Unloading distance(mm) |
900 |
Fuel tank(L) |
50 |
Loading bucket width(mm) |
2200 |
Hydraulic oil tank(L) |
50 |
Loading bucket width(m3 ) |
1.2 |
OTHERS |
|
Max.Loading Lifting Capacity(mm) |
4300 |
Driving type |
4*4 wheel |
Maximum rising power(KN) |
42 |
Variable speed type |
hydraulic transmission |
Loading bucket working time(s) |
12 |
Brake distance(mm) |
620 |
