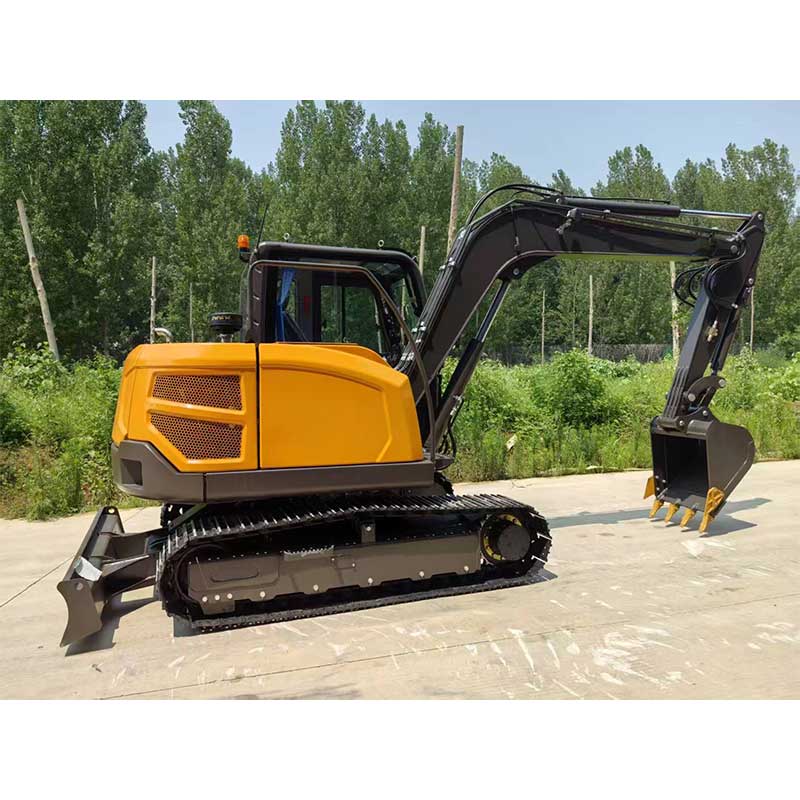

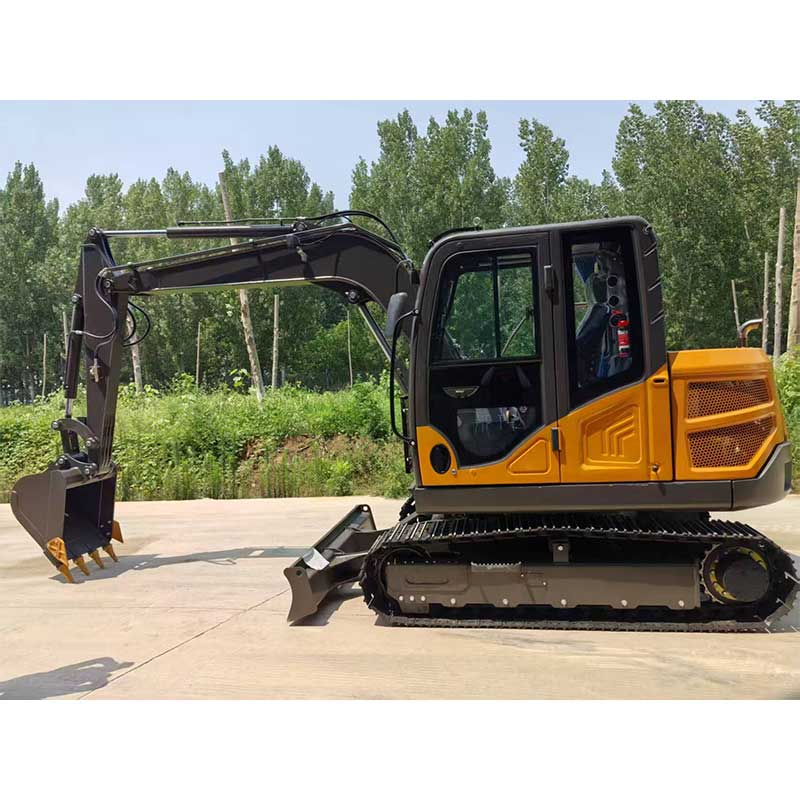

6Ton Excavator
The 6-ton excavator is specifically designed for a variety of engineering applications and is an excellent construction tool. It is equipped with well-known brand engines, such as the Yanmar 4TNV94L, with a power output of up to 36.2 kW, providing strong power to easily handle various soil excavation tasks while also being fuel efficient, effectively reducing operating costs.
This excavator features an advanced hydraulic system with stable pressure and rapid response, achieving a maximum bucket digging force of 48 kN and an arm digging force of 35 kN, ensuring outstanding digging efficiency. It offers a wide operating range, with a maximum digging radius of 6,128 mm, a maximum digging depth of 3,808 mm, and a maximum digging height of 5,499 mm, capable of meeting diverse depth and height requirements.
In terms of design, the machine features a compact and flexible chassis with appropriate overall dimensions, enabling it to operate freely in narrow spaces. Combined with a 360-degree rotating work device, operation is more convenient. Additionally, the spacious and comfortable cab is equipped with a user-friendly control system, reducing operator fatigue during prolonged use. The 6-Ton Excavator can also be fitted with various attachments, such as breakers and grapples, further expanding its application scope. Whether in construction, municipal engineering, or agricultural and water conservancy projects, it plays a crucial role.
|
ENGINE |
|
|
Emission Standard |
China Stage III or Euro5/EPA4 |
|
Make /Model |
KUBOTA/V2607 |
|
Power /Rotation speed |
36.2kw(50HP)@2000rpm |
|
Number of cylinder |
4 |
|
TRACK SYSTEM |
|
|
Maximum Travel speed |
2.4/4.3 km/h |
|
Width of track shoe |
400mm |
|
Number of track shoe per side |
40pcs |
|
Number of upper roller per side |
1 |
|
Number of bottom roller per side |
5 |
|
PERFORMANCE PARAMETER |
|
|
Standard Bucket capacity |
0.21m³ |
|
Swing speed |
11rpm |
|
Maximum Grade ability |
35° |
|
Maximum Bucket digging force |
48KN |
|
Maximum Arm digging force |
35KN |
|
Hydraulic system pressure |
28Mpa |
|
Machine weight |
6100kg |
|
Fuel tank |
87L |
|
Hydraulic oil tank |
100L |
|
MACHINE SIZE |
|
|
Overall dimension (L*W*H) |
5940mm*1880mm*2570mm |
|
Height of cabin |
2600mm |
|
Track length on ground(Axle base) |
1990mm |
|
Track gauge |
1480mm |
|
Minimum Ground clearance |
353mm |
|
Swing radius at tail |
1689mm |
|
WORKING RANGE |
|
|
Maximum Digging height |
5499mm |
|
Maximum Dumping height |
3845mm |
|
Maximum Digging depth |
3808mm |
|
Maximum Vertical digging depth |
2983mm |
|
Maximum Digging radius |
6128mm |
|
Minimum swing radius |
2607mm |
|
Maximum Lifting height of blade |
376mm |
|
Maximum Cutting depth of blade |
474mm |
