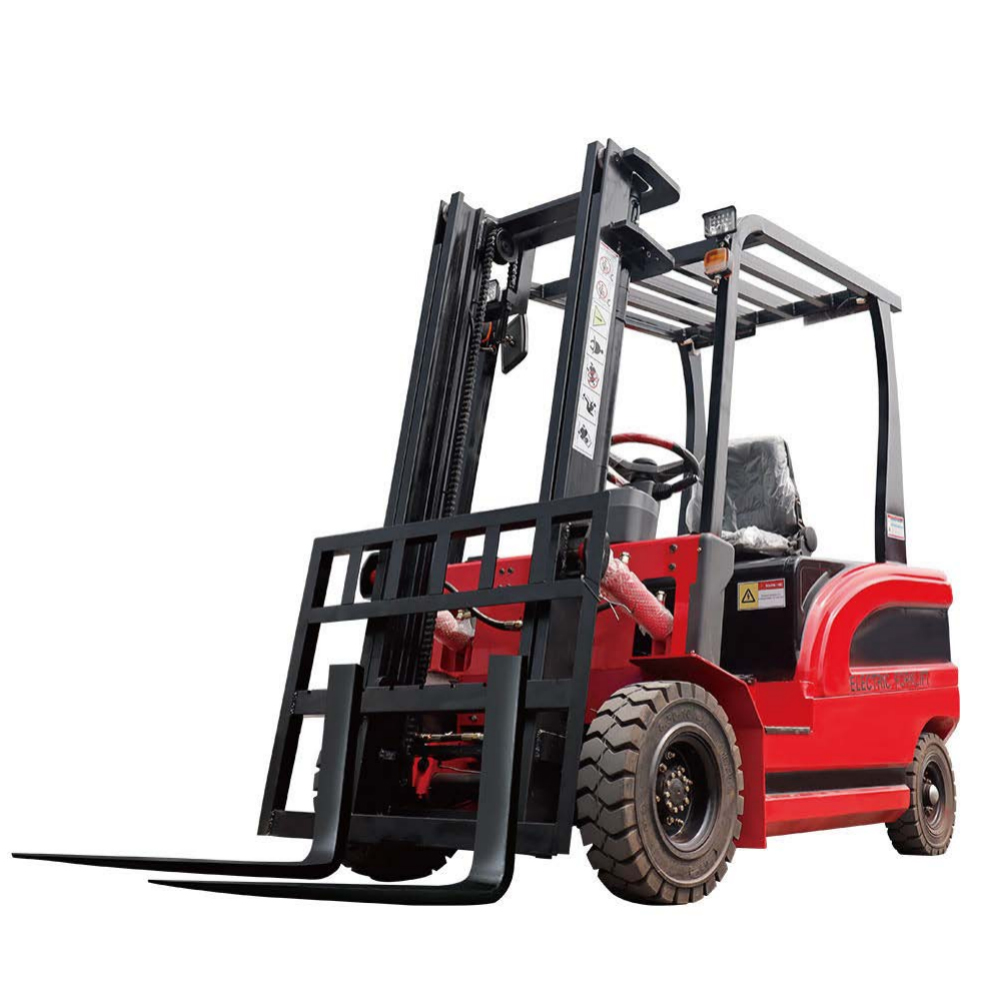

HTCPD30-HTCPD50 3ton-5ton Electric Four Wheel Forklift Truck
|
Model |
HTCPD30 |
HTCPD35 |
HTCPD40 |
HTCPD45 |
HTCPD50 |
|
Walking motor |
15Kw |
17.5Kw |
18kw |
18kw |
18kw |
|
Lifting motor |
13Kw |
15Kw |
17.5kw |
21kw |
25kw |
|
Lifting height |
3m (customizable) |
3m (customizable) |
3m (customizable) |
3m (customizable) |
3m (customizable) |
|
Rated loading weight |
3000kg |
3500kg |
4000kg |
4500kg |
5000kg |
|
Machine weight |
3800kg |
4000KG |
4800kg |
5200kg |
5800kg |
|
Working time |
6-8hours |
6-8hours |
6-8hours |
6-8hours |
6-8hours |
|
Battery type |
60V300ah |
60V3500ah |
72V400ah |
72V450ah |
80V500ah |
|
|
Tianneng Brand |
Tianneng Brand |
Tianneng Brand |
Tianneng Brand |
Tianneng Brand |
|
Charging time |
5-6hours |
5-6hours |
5-8hours |
5-8hours |
5-8hours |
|
Charging voltage |
220v(customizable) |
220v(customizable) |
220v(customizable) |
220v(customizable) |
220v(customizable) |
|
Output voltage |
60v |
60v |
72v |
72v |
80v |
|
Front and rear tires |
front 650-10/ rear |
front 650-10/ rear |
front 28*9-15/ rear |
front 28*9-15/ rear |
front 28*9-15/ rear |
|
|
500-8 solid tires |
18*7.8-10 solid tires |
18*7.8-10 solid tires |
18*7.8-10 solid tires |
18*7.8-10 solid tires |
|
Fork length |
1070/1220mm |
1070/1220mm |
1070/1220mm |
1070/1220mm |
1070/1220mm |
|
|
(customizable) |
(customizable) |
(customizable) |
(customizable) |
(customizable) |
|
Min. ground clearance |
100mm |
100mm |
110mm |
110mm |
110mm |
|
Overall size (excluding fork length) |
2750*1200*2150mm |
2850*1200*2150mm |
3000*1250*2200mm |
3200*1250*2200mm |
3400*1250*2200mm |
