Can be used to transport cement, sand, fruit, wood and so on. The hopper can be turnedup and down 90° The hopper can be rotated 180°left and right Separate tipping and rotation controls can be oper

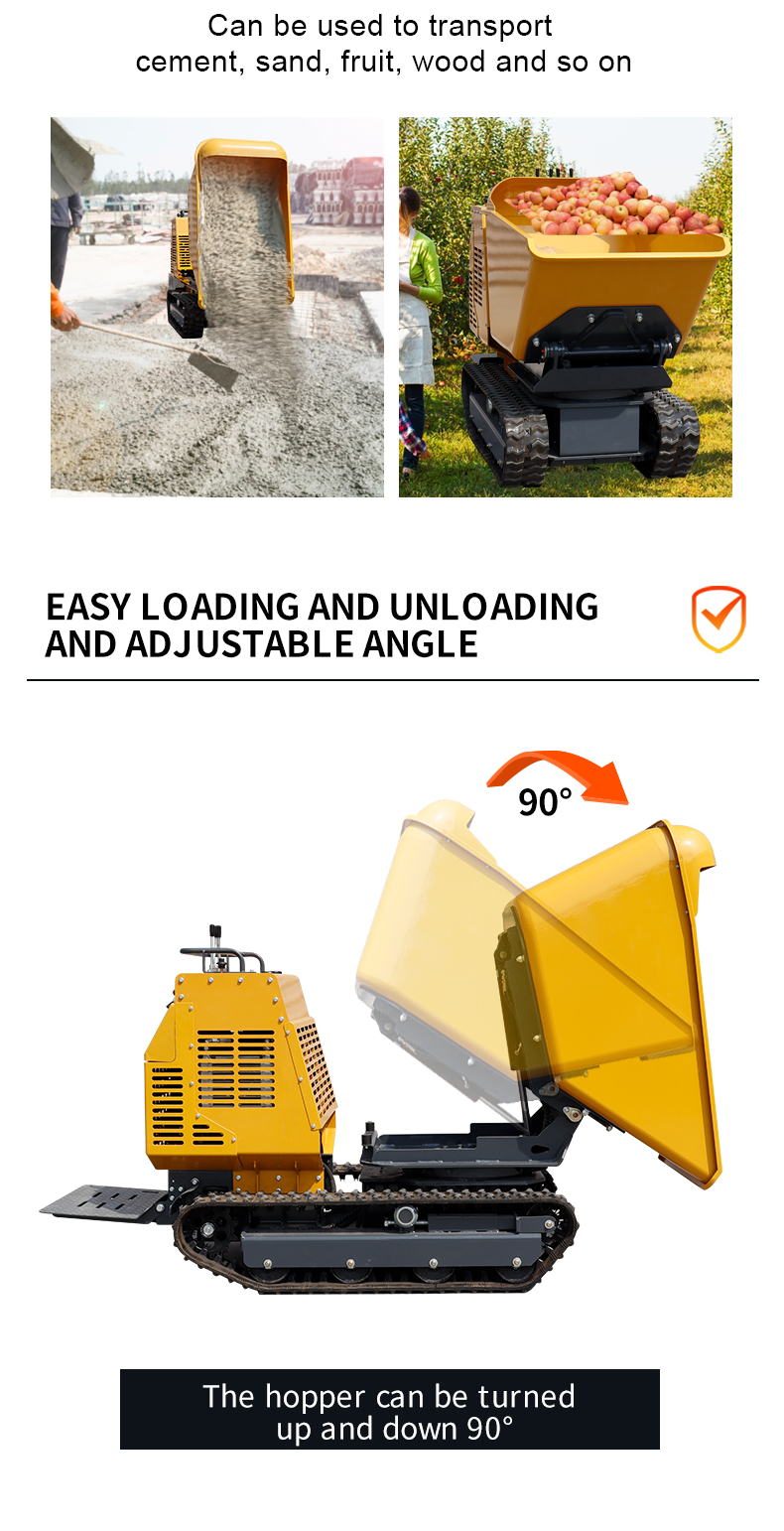

Can be used to transport cement, sand, fruit, wood and so on.
The hopper can be turnedup and down 90°

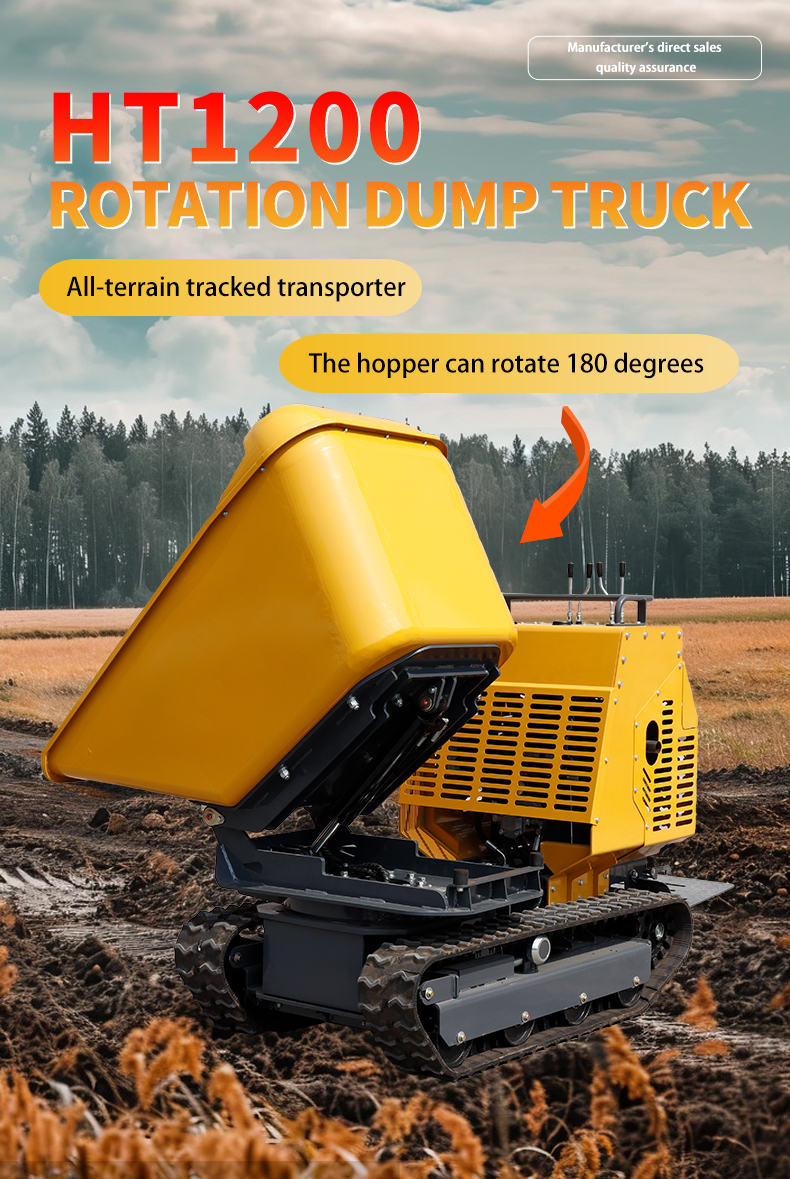

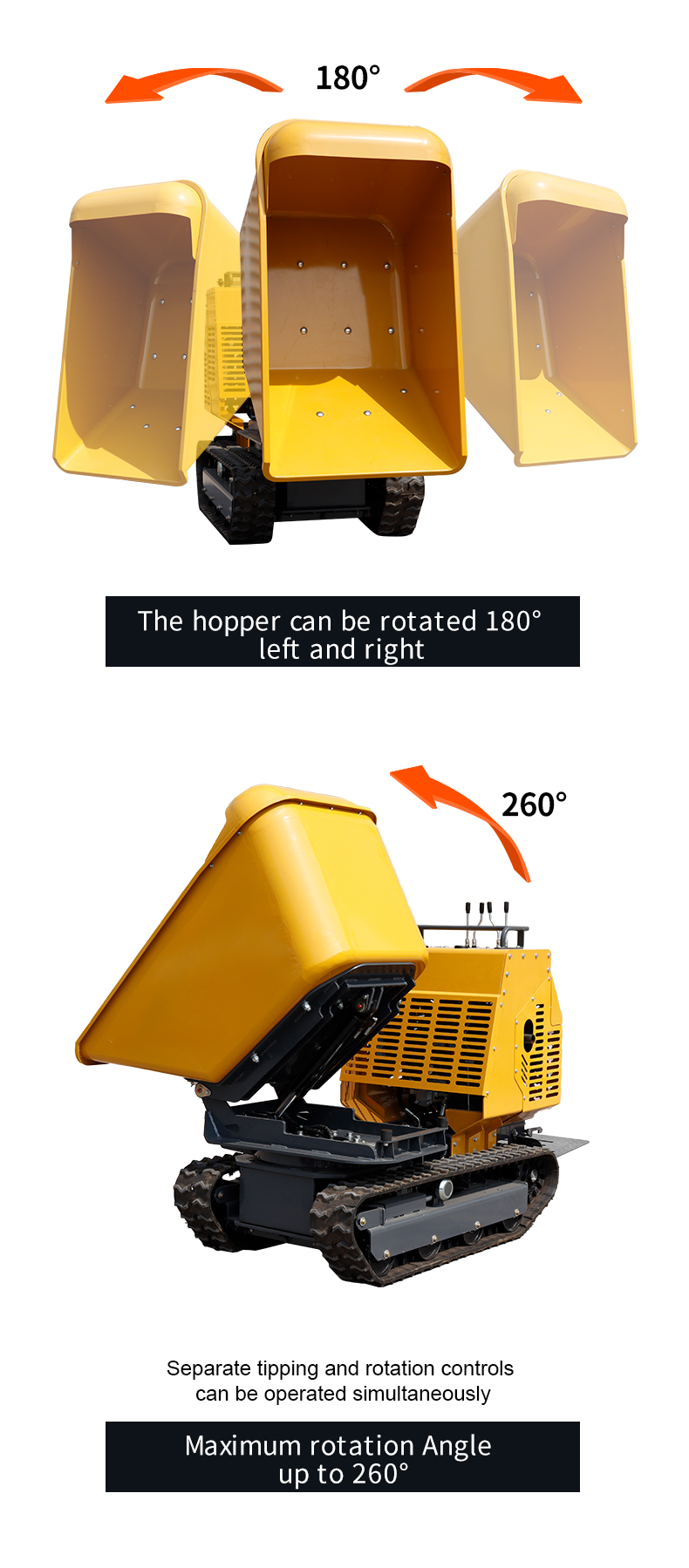

The hopper can be rotated 180°left and right
Separate tipping and rotation controls can be operated simultaneously
Maximum rotation Angleup to 260°
product features
1.rubber track
Engineering rubber track Strong grip.Good climbing performance wear-resistant
2.hydraulic self-discharce
Hydraulic lifting,Not easy to rust,One-click start,Easy loading and unloading

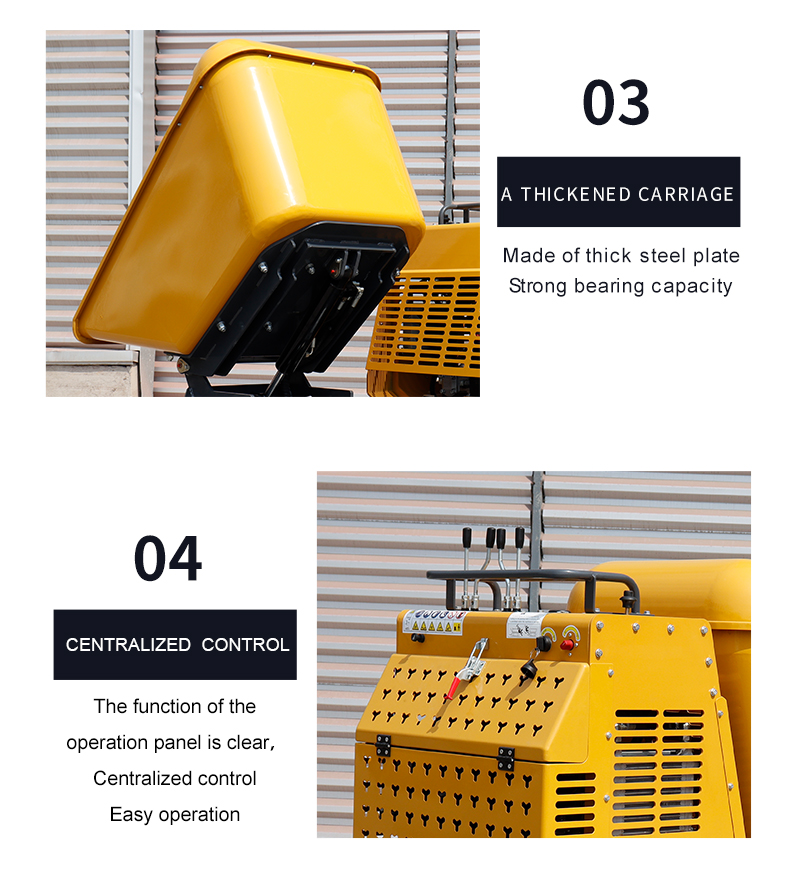

3.a thickened carriage
Made of thick steel plate.Strong bearing capacity
4.centralized control
The function of the operation panel is clear.
Centralized control Easy operation

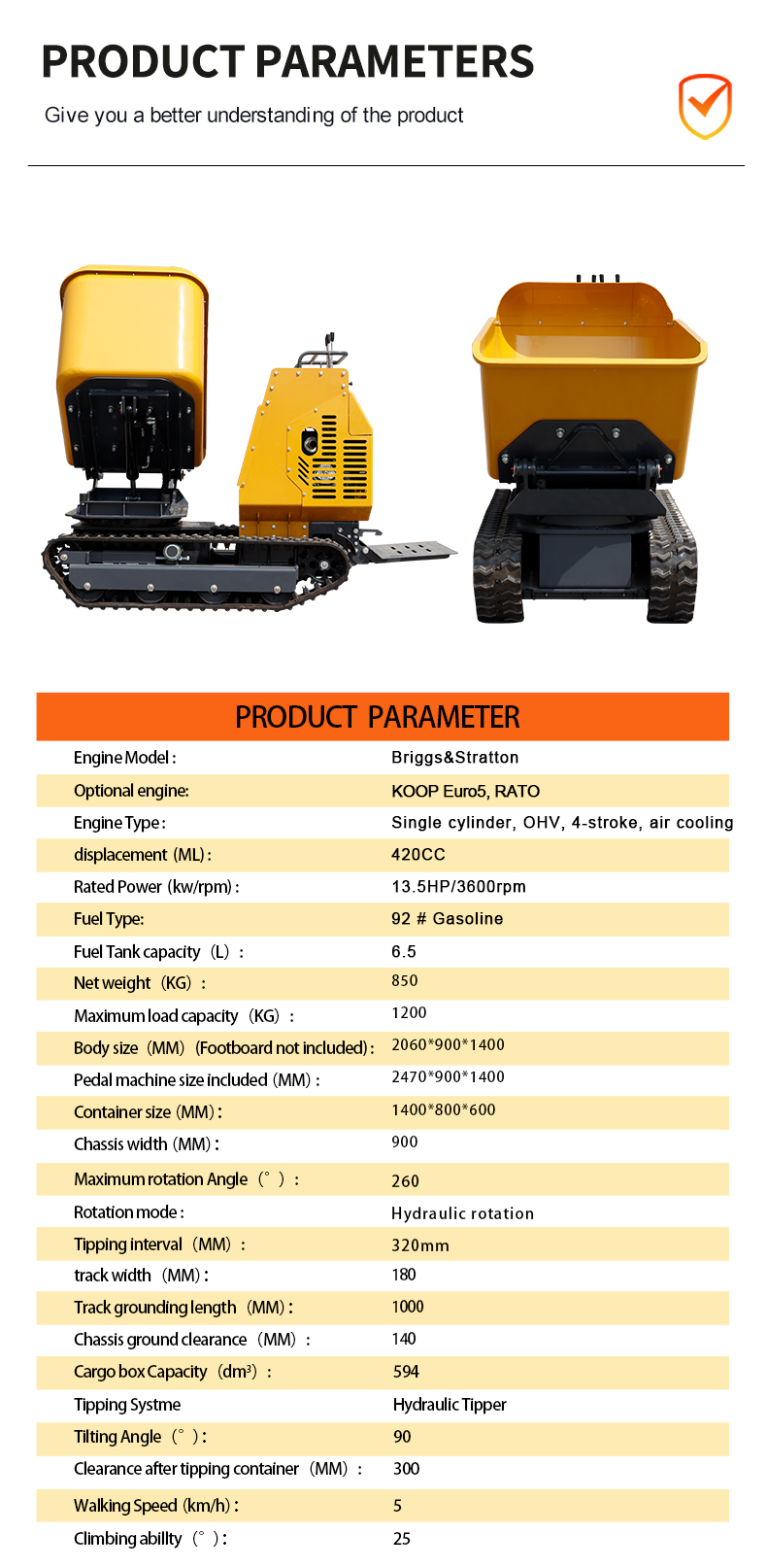

Engine data |
|
Engine Model |
Briggs & Stratton Engine Pioneer |
Engine Type |
Single cylinder, OHV, 4-stroke, air cooling |
displacement |
420CC |
Rated Power |
13.5HP/3600rpm |
Fuel Type |
92 # Gasoline |
Fuel Tank capacity |
6.5L |
Weight data |
|
Net weight: |
850kg |
Maximum load capacity |
1200kg |
Body size : (Footboard not included) |
2060*900*1400mm |
Pedal machine size included |
2470*900*1400mm |
Container size: |
1400*800*600mm |
Chassis width: |
900mm |
Rotating data |
|
Maximum rotation Angle |
260° |
Rotation mode: |
Hydraulic rotation |
Tipping interval |
320mm |
Track data |
|
track width: |
180mm |
Track grounding length: |
1000mm |
Chassis ground clearance: |
140mm |
Hopper data |
|
Cargo box Capacity |
594dm³ |
Tipping Systme |
Hydraulic Tipper |
Tilting Angle |
90° |
Clearance after tipping container |
300mm |
Walk data |
|
Walking Speed |
5km/h |
Climbing abillty |
25° |
