Baking paint process adopted on the whole machine to ensure a stronger adhesion and be colorfast.
Description of HT960 Small Wheel Loader :
Baking paint process adopted on the whole machine to ensure a stronger adhesion and be colorfast.
Electrophoresis frame adopted to ensure resistant to rust.
Features of HT960 Small Wheel Loader :
Wheel loaders Can be equipped with a variety of attachments to achieve a multi-function,multi-purpose machine.
Technical parameters of HT960 Small Wheel Loader :
HT960
Wheel Loader Basic Information
Overall Operating Weight
19000kg
L*W*H
8360*2950*3600mm
Wheel base
3260mm
Wheel Tread
2250mm
Bucket Capacity
3.5m³
Rated Load
6000kg
Max. Breakout Force
200KN
Max.Dump Height
3.16m
Engine Information
Brand
WEICHAI
Model
WEICHAI WD10G240E21
Type
inline,water cooled,dir.inject,fourstrokees
Rated Power
175KW
Rated Speed
2200r/min
Steering System Drive System Information
Tire Size
26.5-25
Steering Angle
38°±1
Pattern of Wheel Side Moderation
Single stage planetary
Main Reducer
Spiral bevel gear first reduction
Type
38km/h
Max.Travel Speed
HANGCHI ZL60
Transmission Information
Information
Electronic control torque converter and gearbox combination
Transmission
2forward 1reverse

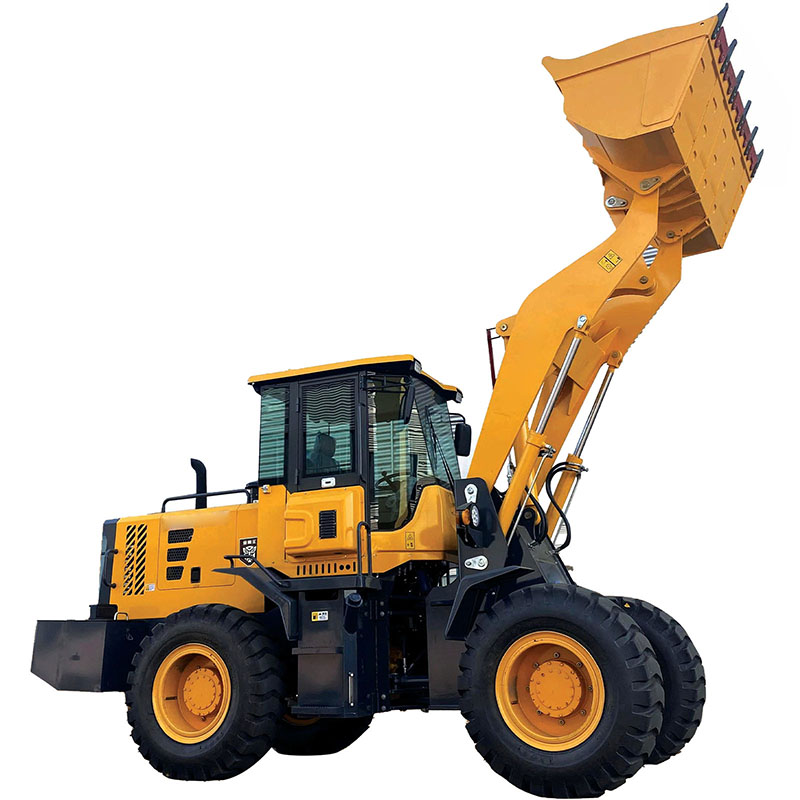

Images of Small Wheel Loader
