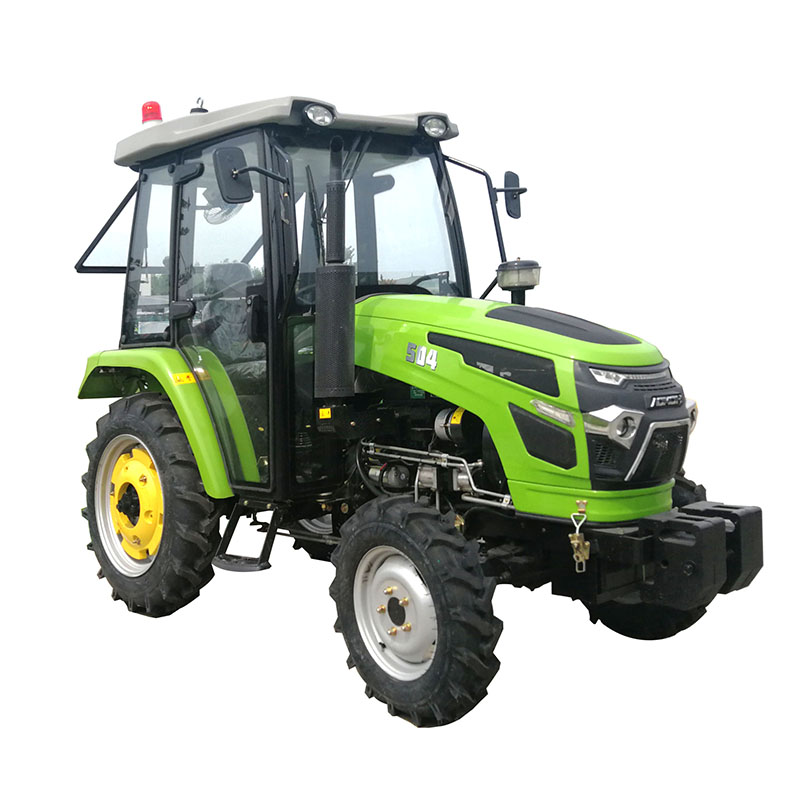

HT504-E 50HP Tractor
|
HT504-E |
Driven model |
4WD |
|
Engine |
LAIDONG |
|
|
Emission Standards |
Ⅱ stages |
|
|
Engine power |
50 |
|
|
Clutch |
Double-stage type |
|
|
PTO speed |
540/720rpm |
|
|
PTO spline number |
6 |
|
|
Max.rated drawing power |
≥11.5KN |
|
|
weight |
1550kg |
|
|
Steering |
hydraulic steering |
|
|
Gears |
8+2 |
|
|
Speed |
1.78-26.93 |
|
|
Tires size |
7.50-16/11.2-28 |
|
|
Wheel Base |
1810mm |
|
|
（L*W*H）mm Overall dimension |
3640*1620*2240 |
|
|
选装 |
Front ballast |
|
|
Rear ballast（one layer） |
||
|
ROPS |
||
|
Canopy |
||
|
Gear 8+8 |
||
|
Double-stage type |
||
|
1 groups of hydraulic output |
||
|
2 groups of hydraulic output |
||
|
Air compressor |
||
|
External Forced lifter |
||
|
Swing traction |
||
|
Fan cab |
||
|
Heating cab |
||
|
Tires 7.5-16/11.2-28 |
||
|
Iron frame packaging |
