3.5T Small Excavator high fuel efficiency，super power Saving energy and protecting environment

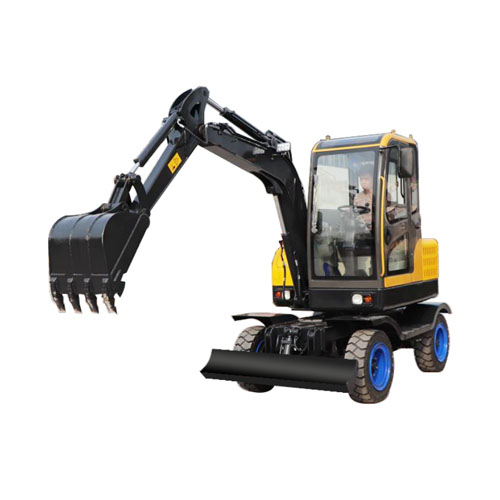

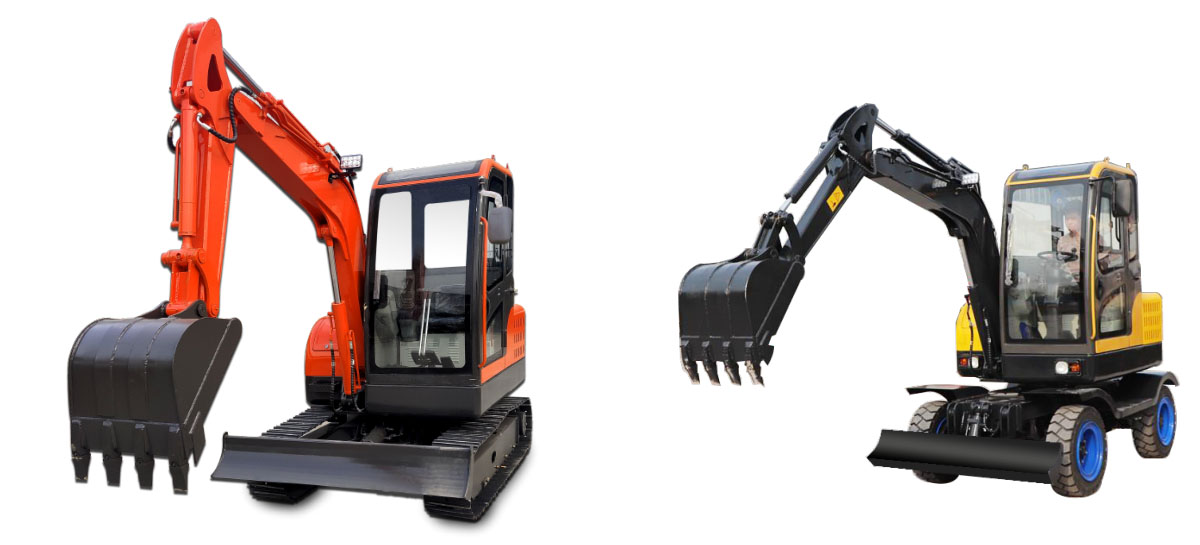

The 3.5 ton excavator have crawler type and wheel type, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
|

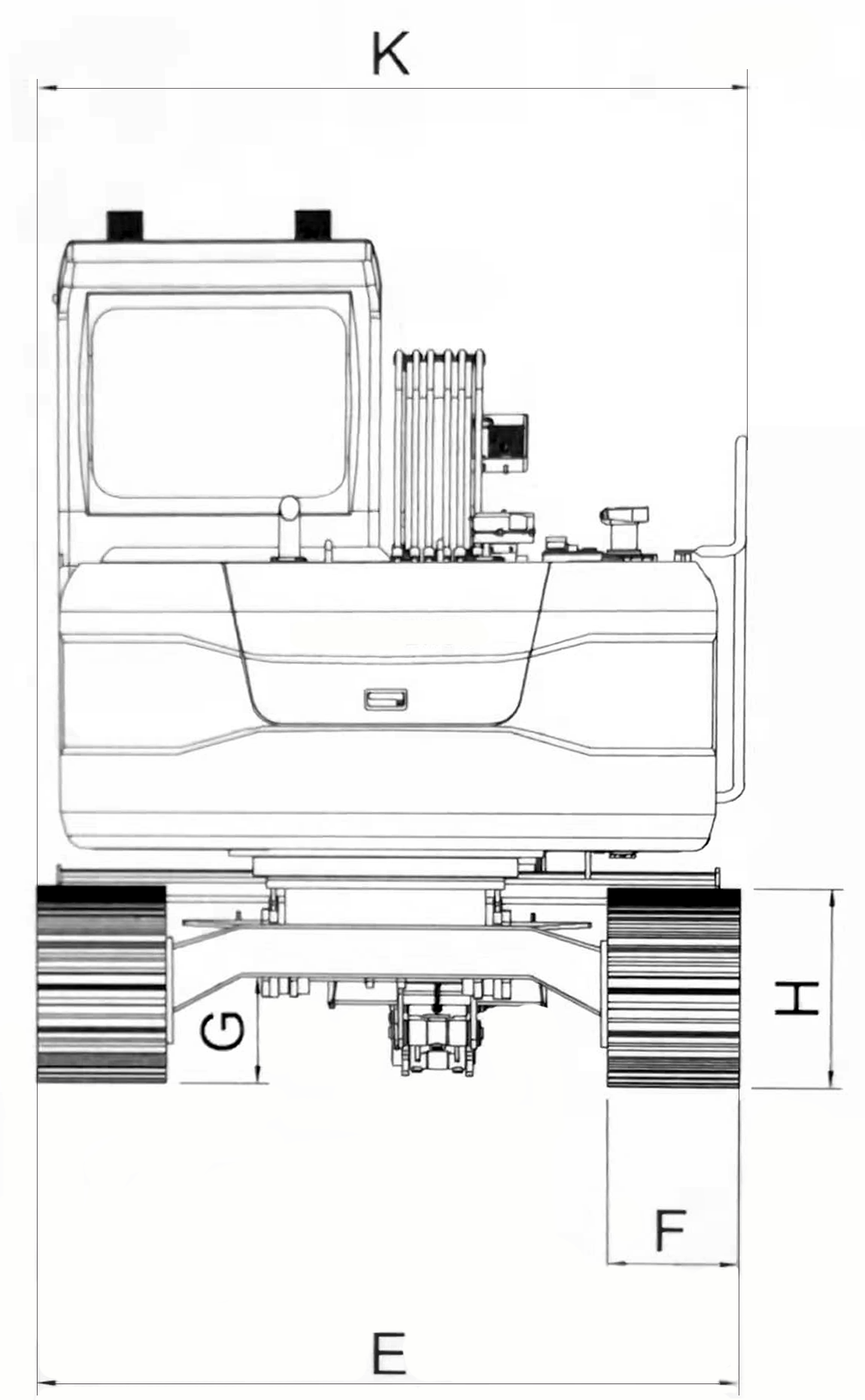

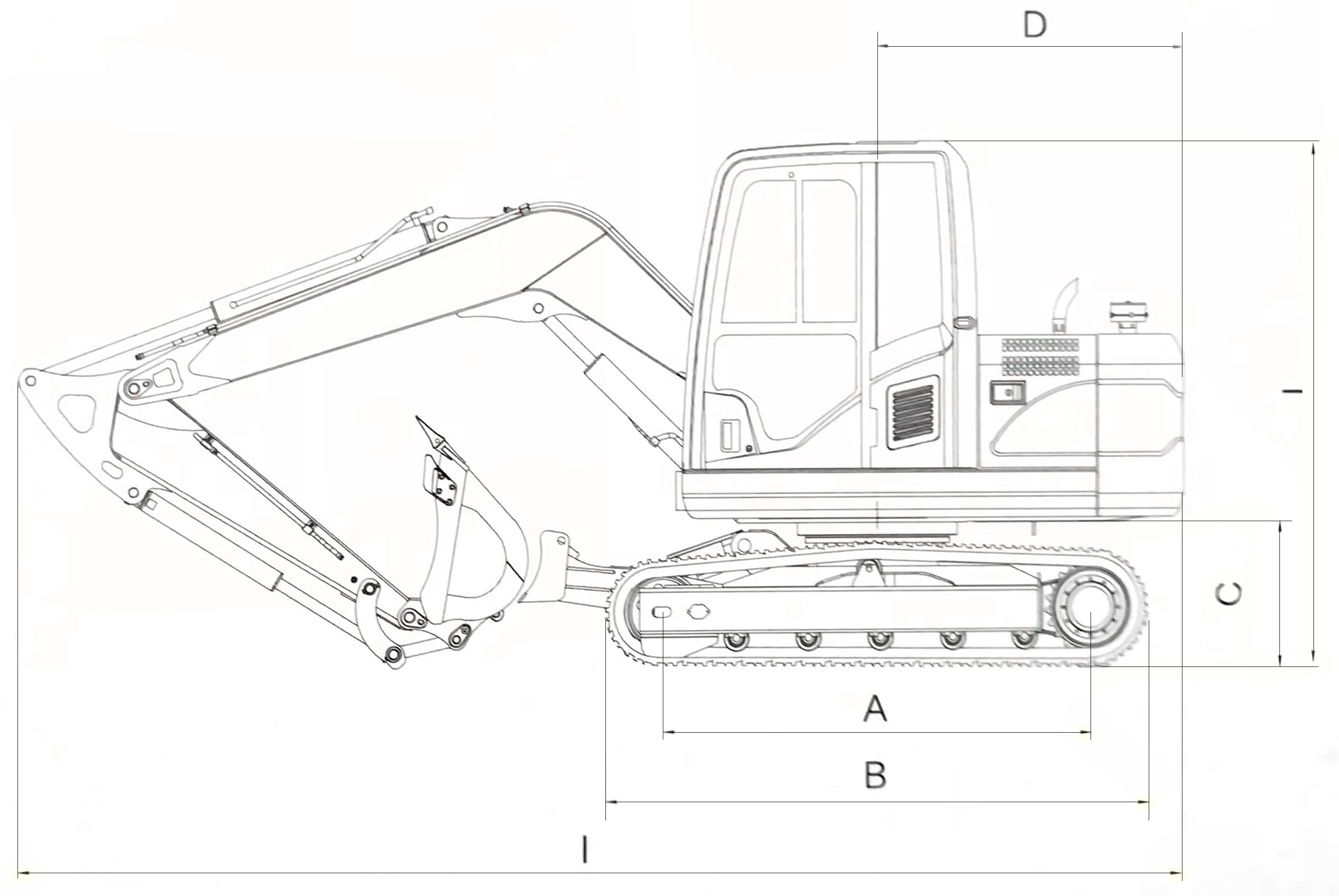

Boundary dimension |
|
|
Transport length |
4400 mm |
|
Transport height |
2200 mm |
|
Chassis width |
1530/1600 mm |
|
Track width |
300 mm |
|
Total track length |
2175 mm |
|
Track gauge |
1703 mm |
|
Pltom ground clearance |
557 mm |
|
Working rage |
|
|
Max. Digging height |
4450 mm |
|
Max.dumping height |
3050 mm |
|
Max. Digging depth |
2545 mm |
|
Maximum digging distanc |
4630 mm |
|
Max.Digging radius |
4730 mm |
|
Minimum radius of gyration |
1820 mm |
|
Maximum lfting height of earth shovel |
359 mm |
|
The maximum digging depth of dozer |
268 mm |
|
Min Tail swing radius |
1170 mm |
|
Engine |
|
|
Engine model |
ZN490 |
|
Power |
34 KW |
|
Coling method |
Water- cooling Diesel engine |
|
Hydraulic system |
|
|
Operating Pressure |
22 mpa |
|
Waliking motor |
Two speed plunger |
|
Rotary motor |
Variable plunger |
|
The main pump |
32cc Plunger 32cC |
|
Flow |
99/min |
|
Performance parameter |
|
|
Clirmbing abilifty |
35° |
|
Max. digging force |
55.6KN |
|
Travel speed |
2.4/4. 6km/h |
|
Rall contact pressure on the ground |
34.8kpa(0.355kgf/8cm2) |
|
Specification |
|
|
Bucket Capacity |
0.26m3 |
|
Fuel reservoir |
60L |
|
Hydraulic tank capacity |
75L |
|
Operating Weight |
3600kg |
